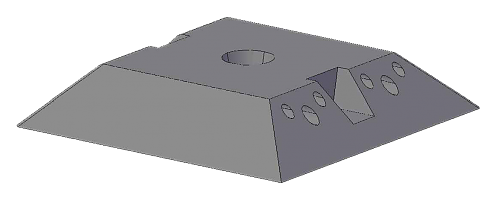

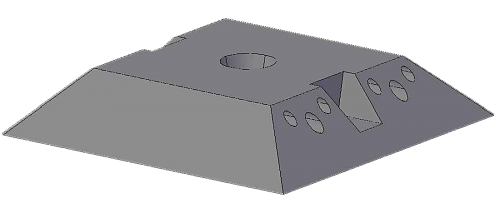

HMS-LP 4000

HMS-LP 4000 image

click to enlarge

Mooring Information:

List Price:
For price, call Hamilton Marine at 1-800-639-2715
Weight:
4,305 lbs.
Dimensions:
Base Width 6' 4" square; Top Width 4' 0" square; Height 14"
Concrete:
Structural Fiber Reinforcement; 5,000 PSI Concrete
Steel Hitch Rod:
1.25" Diameter x 41" long. Steel plate welded one end, ½" hole in opposing end, with 2" x ½' galvanized bolt inserted through the hole. Bolt has pierced end so that stainless steel cotter pin can trap the ½" galvanized nut. Welded steel plate measures 3/8" thick x 2" wide x 3" long. Hitch rod, with plate and hardware, weighs 16lbs.
Habitat Chambers:
4 Each 3" diameter tunnels, 2 each 4" diameter tunnels

Spec Sheet

Where to Buy
